Automatic Full Body Silicone Lipstick Manufacturing Equipment Cosmetic Filling Machine

Name: Automatic Full Body Silicone Lipstick Manufacturing Equipment Cosmetic Filling Machine
Brand: GIENI
Price: 1 USD

China Automatic Full Body Silicone Lipstick Manufacturing Equipment Cosmetic Filling Machine wholesale

Brand Name : GIENI

Model Number : FSM-4

Certification : CE

Place of Origin : Shanghai, China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1

Delivery Time : 30

Packaging Details : plywood case, solid export package, 1 pallet

Machine Name : Automatic Full Body Silicone Lipstick Manufacturing Equipment

MachineDimension : 7360X2250X2385mm (LxWxH)

Lipstick LINE : Pre-heating station, Filling machine ,Cooling Unit,Demolding Unit,Demolding Unit

Filling Nozzles : Four nozzles for filling at a time

Filling Valve : New Design, Fast Disassemble Type, quick change material and clean

Filling Tanks : 2 tanks, one for filling, another for backup

Production Capacity : 720-960 pcs per minute

Feature : Heated Coiled tubes, more safe

Service offered : online support, video call technical support, free repair parts, onsite installation, training, maintenance

Application : full silicone lipstick; single/double filling; marbel lipstick

Contact Now

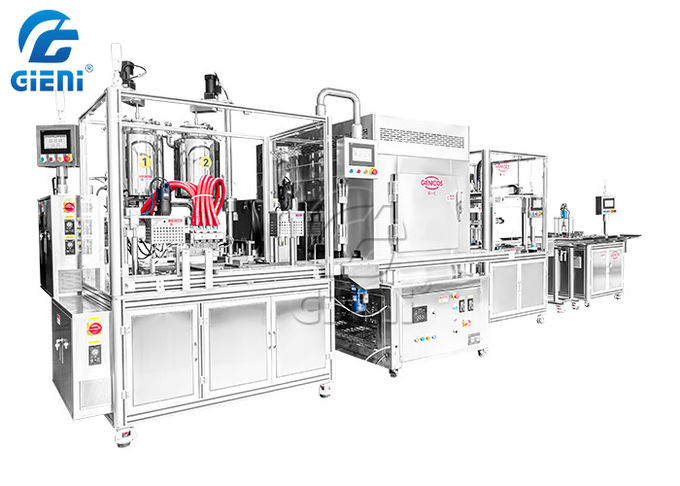

Automatic Full Body Silicone Lipstick Manufacturing Equipment(FSM-4) is our latest design with 4 nozzles, the output is 720pcs tp 960 pcs per hour. This line consists of pre-heating station, auto filling, auto re-melting, auto cooling, auto demolding, auto screw down and manual capping.

Applications of Automatic Full Body Silicone Lipstick Manufacturing Equipment

used for full body silicone lipstick production, applied for single color filling and dual color filling, marble lipstick available

Key Features of Automatic Full Body Silicone Lipstick Manufacturing Equipment

the distance between filling nozzles is adjustable, very flexible
fast disassemble valve, can switch to other materials in very short time
using heating coiled tubes insteaed of traditional oil circulation design, more safe and sanitary

Pre-heating device
1. Adopts Switzerland brand LEISTER Hot Air Gun, blow rate and heating rate are adjustable
2. With lift up and down function, controlled by cylinder
3. Height adjustable

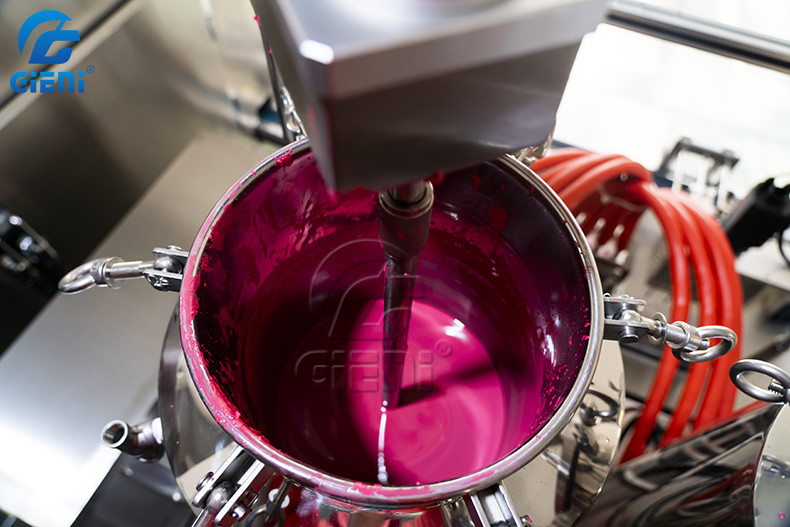

Filling machine (4 nozzles)
1. Two 20L 3-layer stainless steel tank, inner layer is SUS316L.
2. With heating, mixing and vacuum function, mixing speed adjustable.
3. Tank is able to be lifted up/down automatically.
4. Fully servo motor control, fill precision & volume adjustable
5. Filling nozzle with heat preservation and anti-drip functions.

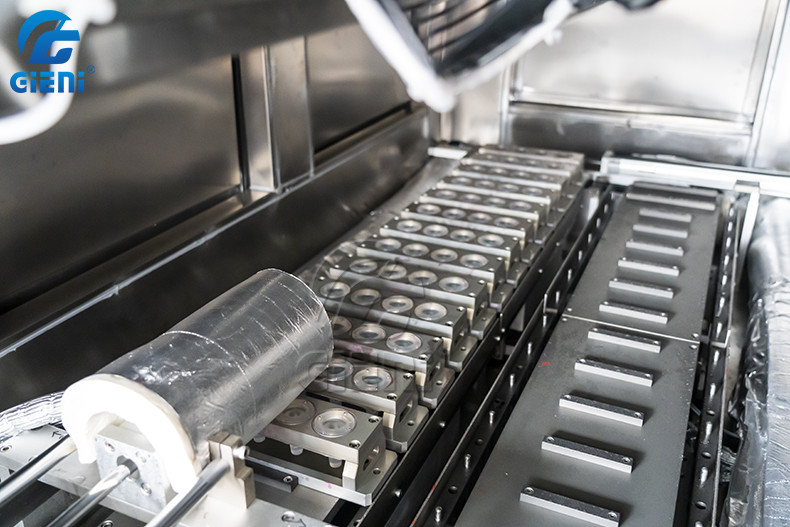

Cooling Unit
1. Temperature range max -20℃
2. Cooling time is adjusable from the mold moving speed.
3. Adopted France brand compressor, environmental refrigenrant medium RAR04A, quality guarantee.

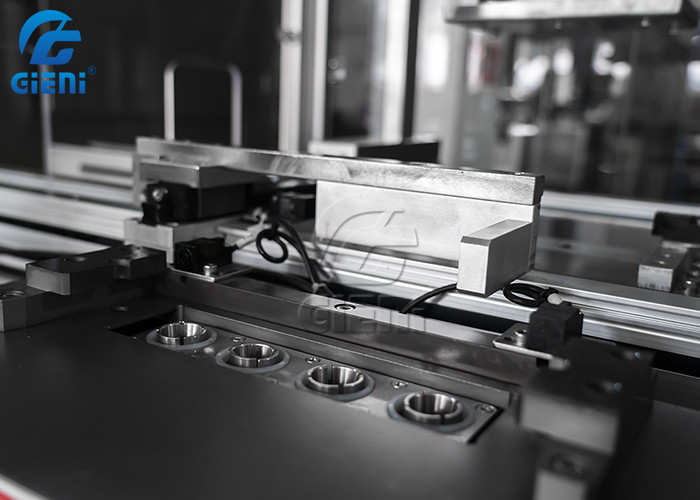

Demolding Unit
1. Vacuum type
2. Grasper the container 4 pcs at a time
3. Rotary cylinder control the grasper's rotating
4. Two-stage vacuum system to release lipstick out of silicone rubber.
5. Lipstick Container Holder automatically to conveyor
Demolding Unit
1. Servo type Screw Down

Model	FSM-4
Outer Dimension	7360x2250x2385mm(LxWxH)
Voltage	AC380V,3P,50/60HZ
Power	32KW
Air consumption	0.6~0.8Mpa, ≥800L/min
Output	720-960pcs/hour
Filling range	2~14ML
Weight	1400kg
Operator	2~3 persons

Automatic Full Body Silicone Lipstick Manufacturing Equipment Cosmetic Filling Machine

Automatic Full Body Silicone Lipstick Manufacturing Equipment Cosmetic Filling Machine Images
